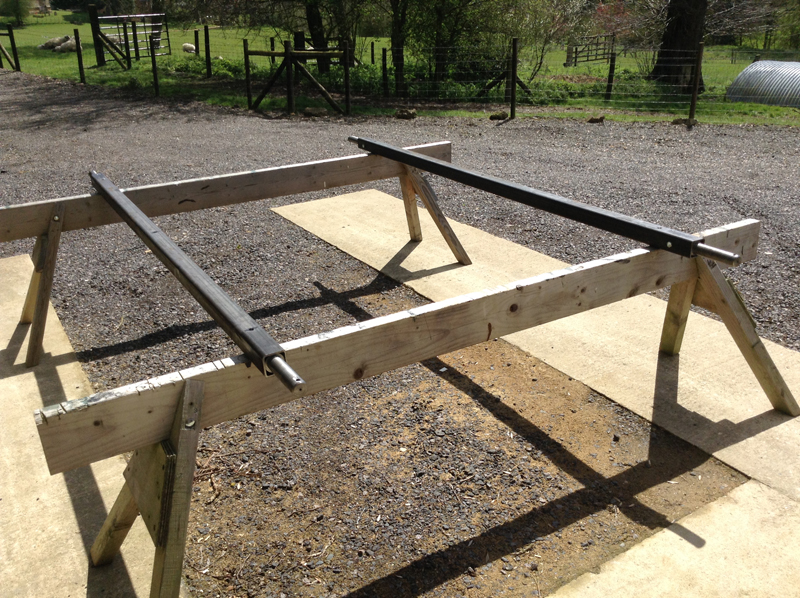

Bespoke Axles fitted into box section for both steel and
wooden chassis

£357.50 + vat per set



To order or discuss this item call: 01788 510 507

or contact us using our quick and easy form below:

Parts enquiry form






Technical Specification:

Length of box section: Up to 2500mm (Larger sizes available, POA)
External Dimensions of section: 60mm x 60mm
Thickness of steel: 5mm

Weight: 25kgs per length (2500mm), including axles.



About our Bespoke Axles fitted into box section for both steel and wooden chassis :

The axles (4 included), machined to fit either our 24” or 32” diameter cast iron wheels (not included), are fixed into position with a threaded bolt (included). Our box section incorporates 3 fixing holes (13mm dia) but other holes can be included, as can bracketry or welded flanges etc, at extra cost. Please contact us for details.
For axle dimensions, please see Technical Specification of “Bespoke Stub Axles for steel box section’’.





Useful Info:

Supplied unpainted.
