Curved Corrugated Roofing  Sheet in Juniper Green

£37.95 each + VAT

Curved corrugated roofing sheet for shepherd hut
Save



To order or discuss this item call: 01788 510 507

or contact us using our quick and easy form below:

Parts enquiry form






Technical specification:

Overall Length: 2865mm
Overall Width: 1092mm
Overall Cover (when overlapped): 990.6mm
Radius: 2100mm
Span width: 2660mm
Arc height: 470mm
Thickness: 0.7mm
Weight: 19kgs

Technical drawing - click here

The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.

About our shepherd hut roof panels:

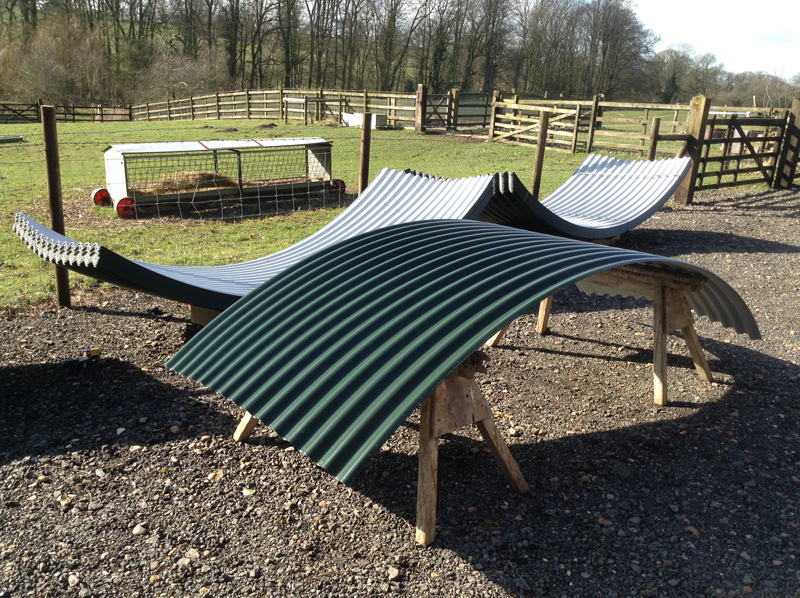

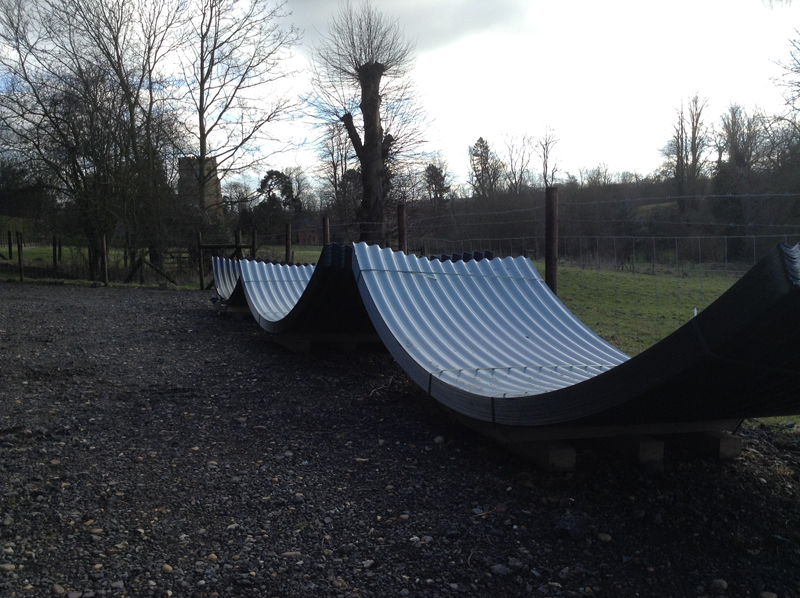

Our galvanised, curved, corrugated sheets are finished in Juniper Green to the top and Alkyd Grey to the underside. Please note that the Polymer finish does scratch quite easily. If you do not wish to over-paint but keep the Juniper Green finish, we can supply cans of spray touch-up paint – see here.

Useful info:

The distance between the ends, on the flat (the span) is 2660mm, with a height of approx. 470mm from the flat to the apex of the curve. Our curved roofing sheets are wider than normal, which means you need fewer sheets to cover your roof!
