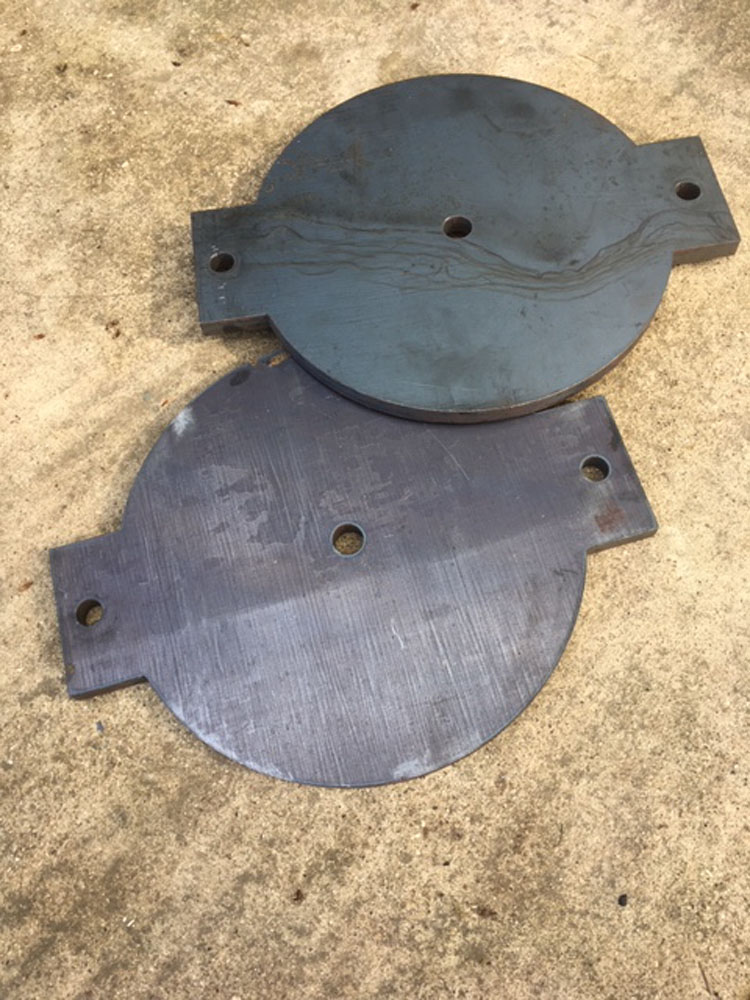

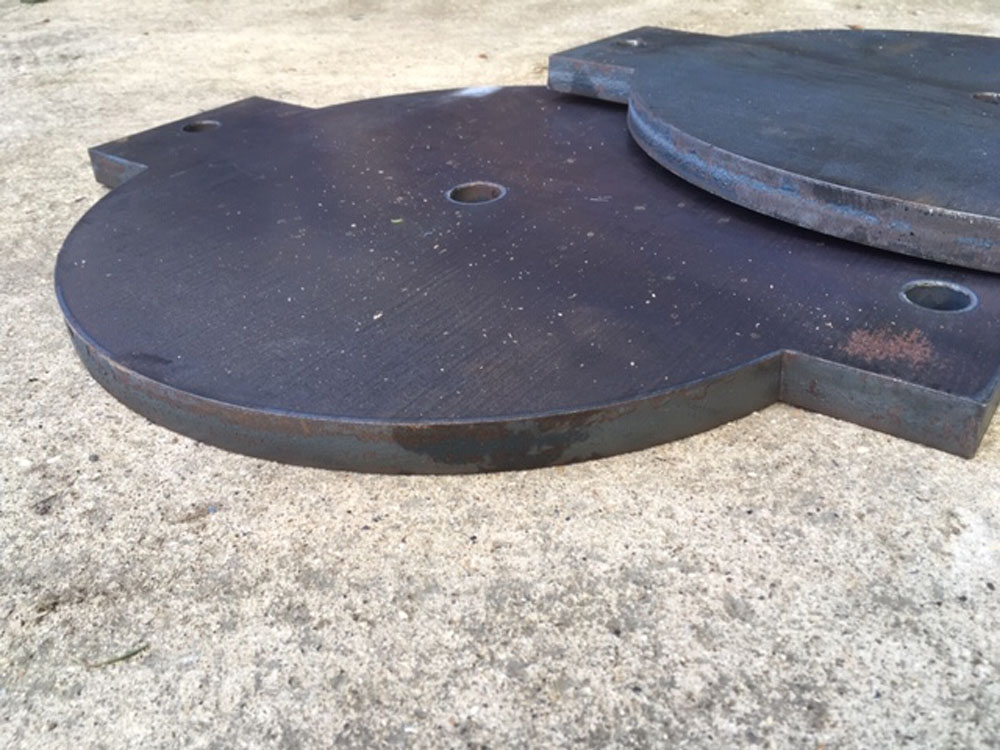

Plain Turn Plates for Metal Shepherd Hut Chassis

£159 + VAT Pair

Shepherd hut timber roof structure
Curved Timber Roof Structure, part assembled and painted Curved Timber Roof Structure, part assembled and painted



To order or discuss this item call: 01788 510 507

or contact us using our quick and easy form below:

Parts enquiry form






Technical specification:

Diameter of Plate: 15” (380mm)
Length of flange: 2 ¼ “ (56mm)
Width of flange: 125mm (5")
Thickness of plate: ¾ “ (20mm)
Weight: 38kgs per pair
Diameter of centre hole 24.5mm
Diameter of holes in flanges 20.5mm

About our Plain Turn Plates:

Designed to be used primarily with a metal chassis, these plates can be welded to both the frame and moving axle. They are very strong and durable. Plain Turn Plates are supplied unpainted.
