Back to self build page <<

Straight corrugated wall sheet

£15.95 each + VAT

Stock of straight Corrugated Wall Sheets
Save

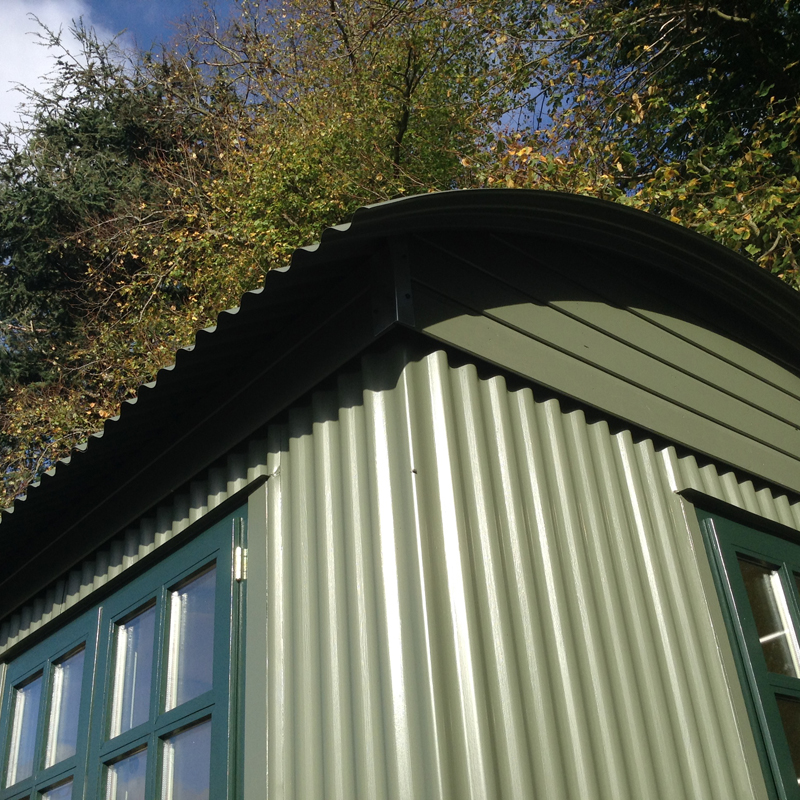

Shepherd hut Straight Corrugated Wall Sheets for sale Painted in Juniper Green to face and primed in Alkyd Grey to underside Overpainted and showing a sheet wrapped around the corner of a shepherd hut



To order or discuss this item call: 01788 510 507

or contact us using our quick and easy form below:

Parts enquiry form






Technical specification:

Overall length: 2080mm
Overall width: 1100mm
Overall cover (when overlapped): 990.6mm
Thickness: 0.5mm
Weight: 10kgs



Technical drawing - click here



The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.




About our Corrugated Wall Sheets:

Our galvanised, straight corrugated sheets are finished in Juniper Green to the top and in Alkyd Grey to the underside. The finish is a Polymer paint, which creates a useful “undercoat”, meaning either side can be over-painted. Please note that the Polymer finish does scratch quite easily. If you do not wish to over-paint but keep the Juniper Green finish, we can supply cans of spray touch-up paint (See Accessories).



Useful info:

Our straight sheets are wider than normal, which means you need less sheets overall!



Please note that we can supply simple instructions, with pictures, of how to fit and cut both the straight corrugated sheets and the profiles around your window apertures, to achieve a neat, watertight finish. Please ask for a set of instructions - free of charge, when ordering your straight corrugated sheets.
