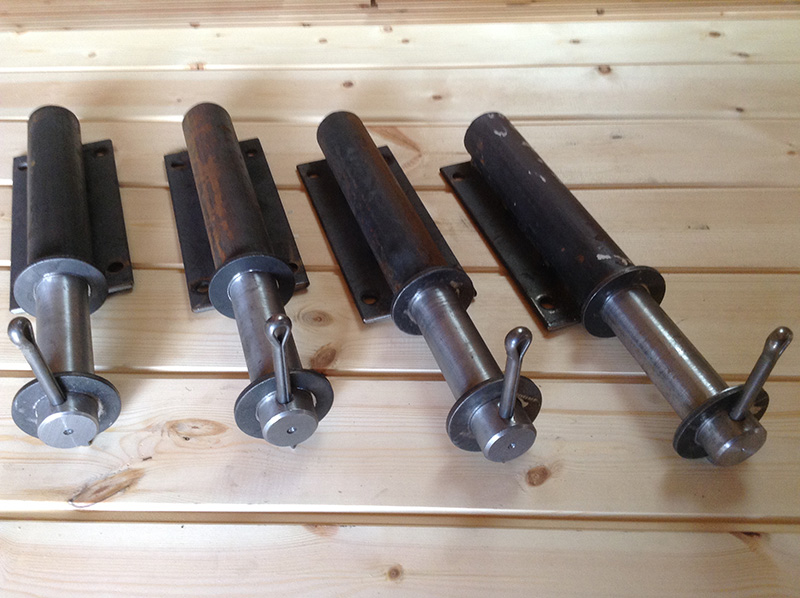

Bespoke Stub Axles for wooden chassis

£73.95 + VAT Each

shepherd hut step



To order or discuss this item call: 01788 510 507

or contact us using our quick and easy form below:

Parts enquiry form






Technical specification:

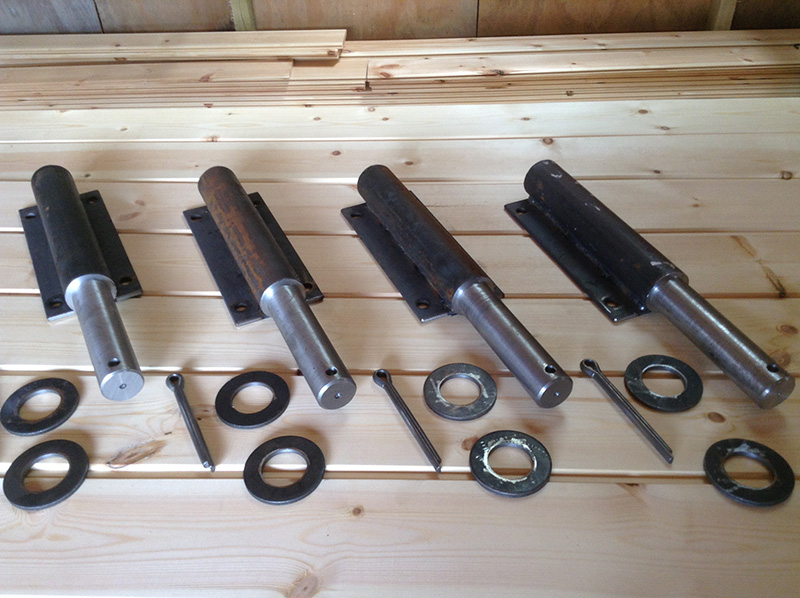

Designed and machined to fit either 20”, 24” or 32” diameter wheels, our stub axles are supplied complete with large washers and split pins. The price of the stub axle is the same whether it is to fit our 20”, 24” or 32” wheels.

Overall Length: 15 ¾ “ (400mm)
Length of plate: 9 ¾ “ (250mm)
Width of plate: 4” (100mm)
Diameter of fixing hole: ½ “ (13mm)
Thickness of plate: ¼ “ (6mm)
Diameter of bar :
32” Wheels – 2” (50mm)
24” Wheels – 1 ½ “ (38mm)
Weight: 6.5kgs

About our Stub Axles for Wooden Shepherd Hut Chassis:

Please state clearly whether you require stub axles for 20”, 24” or 32" diameter Wheels.

Our stub axles are blacksmith made from British steel and are fully paintable.

Useful info:

Please note that when ordering wheels with stub axles, the wheels are fettled and axles machined for a “snug” fit, thus eliminating wobble, particularly important when the inside rim of the wheel is close to your hut walls.
