Technical specification:
Overall Length: 1941mm
Overall Width: 1015mm
Overall Cover (when overlapped twice) – 914.4mm
Radius: 1.103m
Thickness: 0.7mm
Weight: 12kgs
Span Width: 1700mm
Arc Height: 400mm

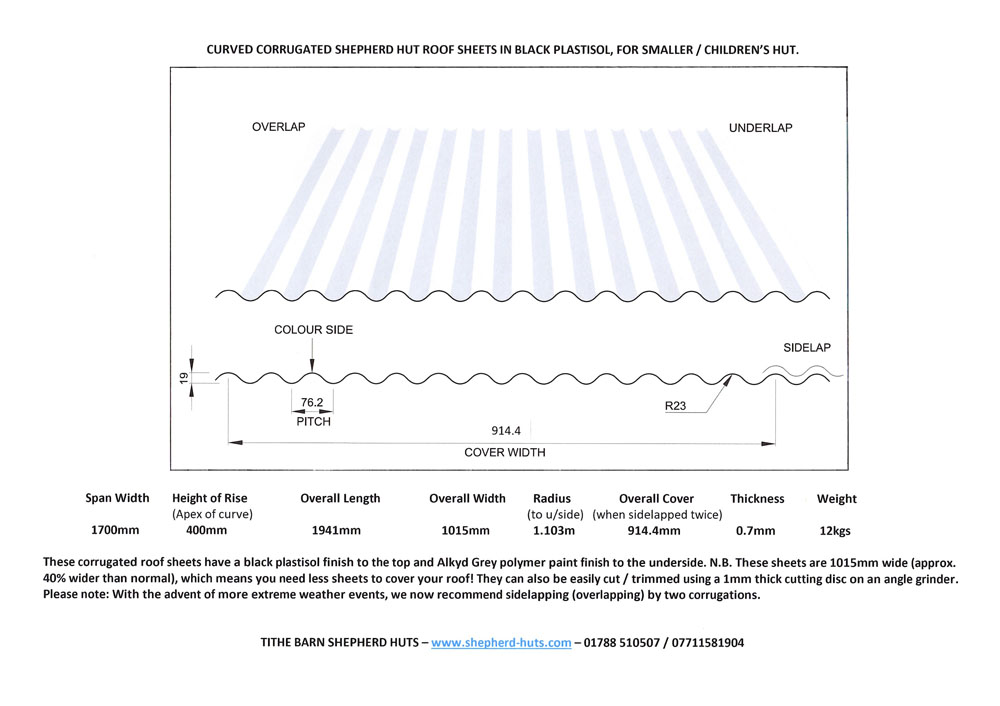

Technical drawing - click here
The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.

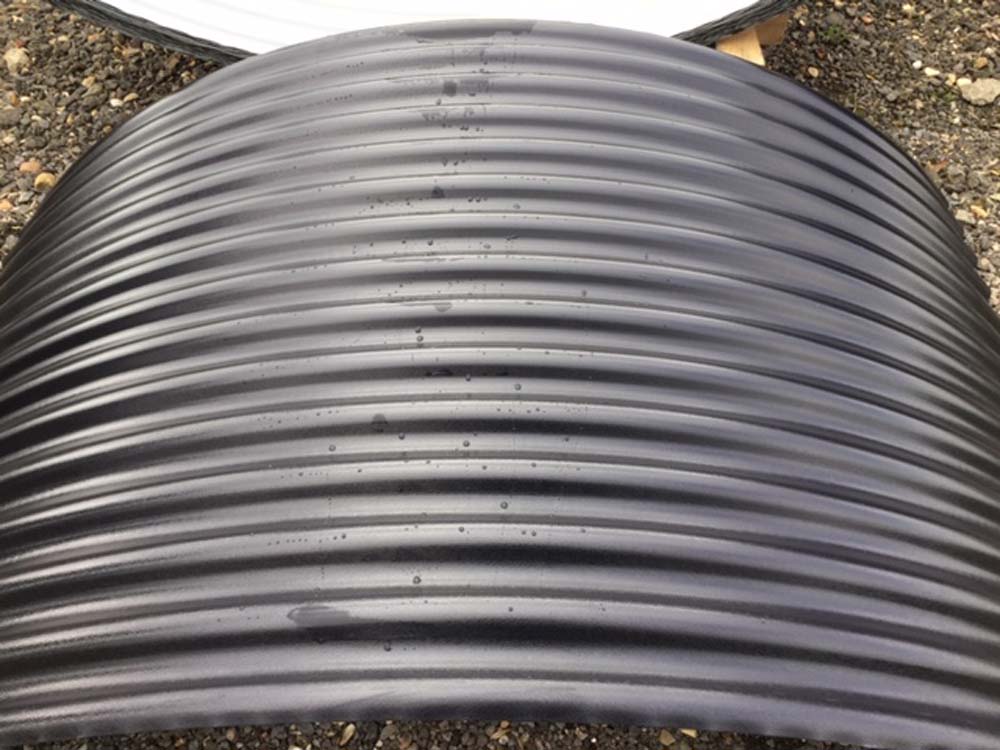

About our small shepherd hut roof panels:
These galvanised, curved, corrugated roofing sheets are finished in Black Plastisol to the top and grey polymer to the underside.
Useful info:
The distance between the ends, on the flat, is 1.7metres, with a height of approx. 0.4metre from the flat to the apex of the curve. Our curved roofing sheets are wider than normal, which means you need fewer sheets to cover your roof!
