Technical specification:
Overall length: 2150mm
Overall width: 1015mm
Overall cover (when overlapped twice): 914.4mm
Thickness: 0.5mm
Weight: 10.33kgs
The sheets are actually 40% wider (with 14 corrugations rather than 10) and because they are 40% wider, you get an additional benefit through needing fewer sheets and therefore not losing so much coverage in overlaps.

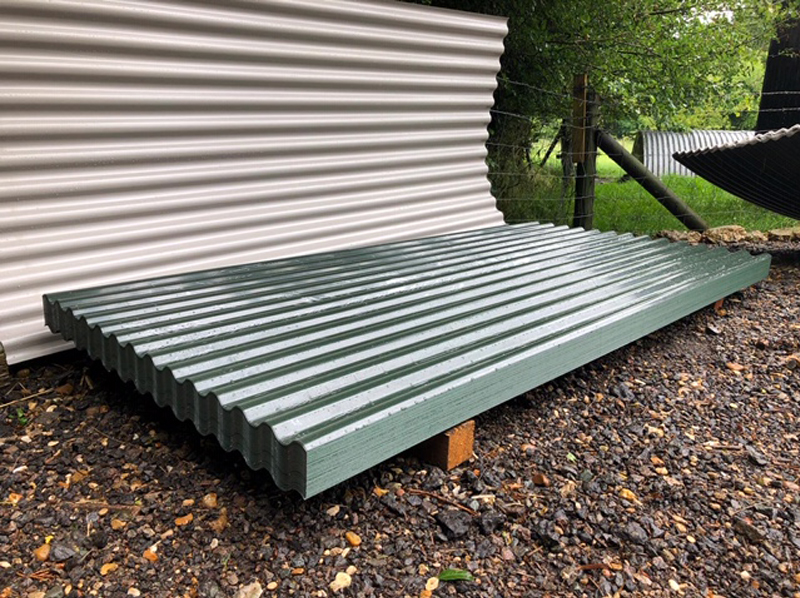

About our Corrugated Wall Sheets:
Our galvanised, straight corrugated sheets are finished in Juniper Green to the top and in Alkyd Grey to the underside. The finish is a Polymer paint, which creates a useful “undercoat”, meaning either side can be over-painted. Please note that the Polymer finish does scratch quite easily. If you do not wish to over-paint but keep the Juniper Green finish, we can supply cans of spray touch-up paint – see here.
Useful info:
Our straight sheets are wider than normal, which means you need less sheets overall!
Please note that we can supply simple instructions, with pictures, of how to fit and cut both the straight corrugated sheets and the profiles around your window apertures, to achieve a neat, watertight finish. Please ask for a set of instructions - free of charge, when ordering your straight corrugated sheets.
