Technical Specification:

Overall Length:  500mm (19.5”)
Plate Length:  352mm
Fixing Plate width:  100mm
Fixing Plate thickness:  15mm
Diameter of Stub:  35mm
Length of Stub:  148mm
Diameter of split pin hole:  10mm
Diameter of fixing holes:  18mm
Weight: 5kg

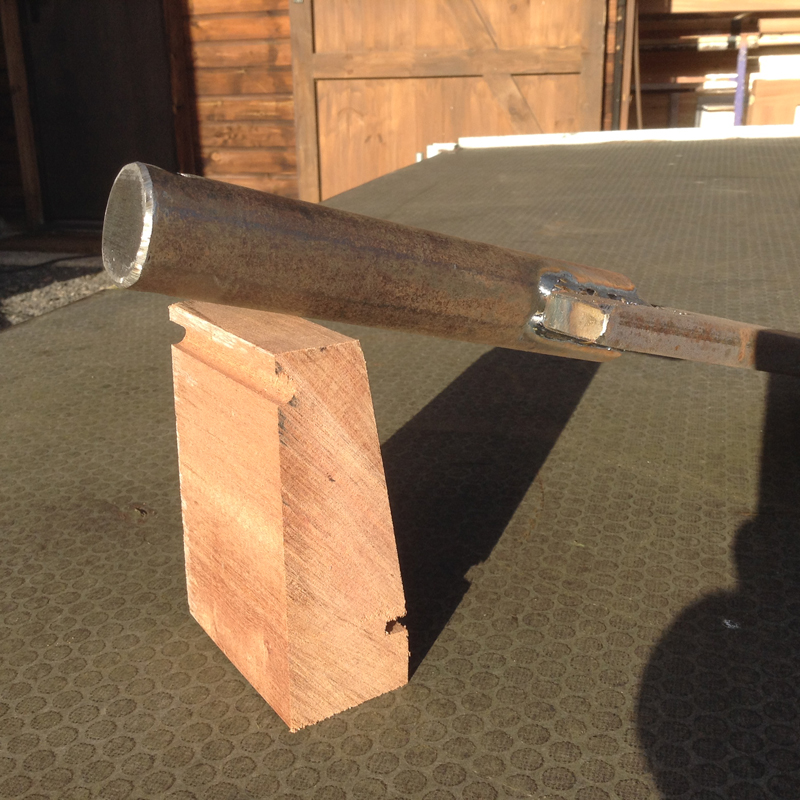

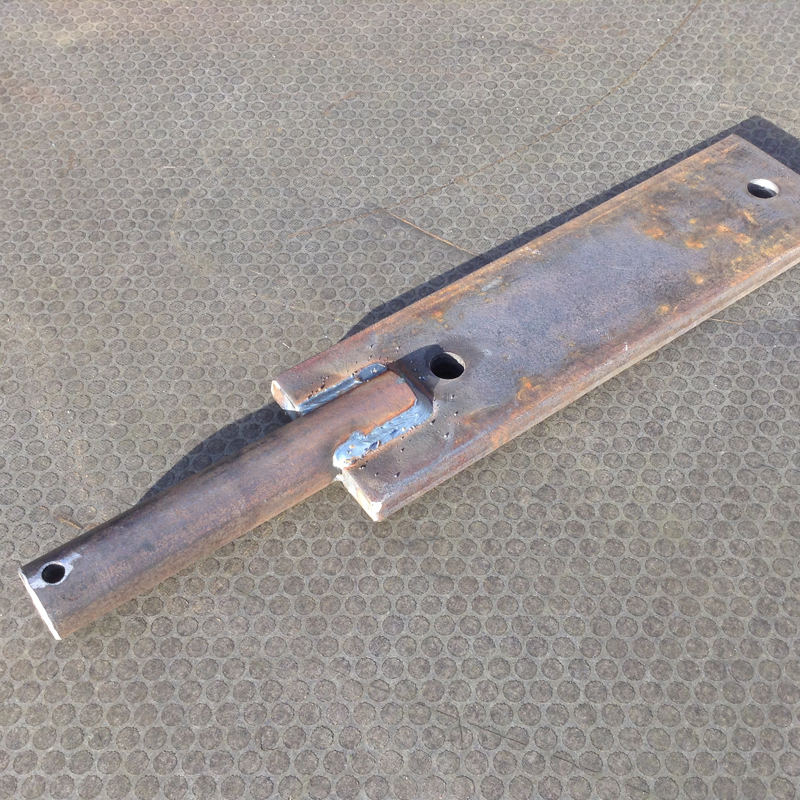

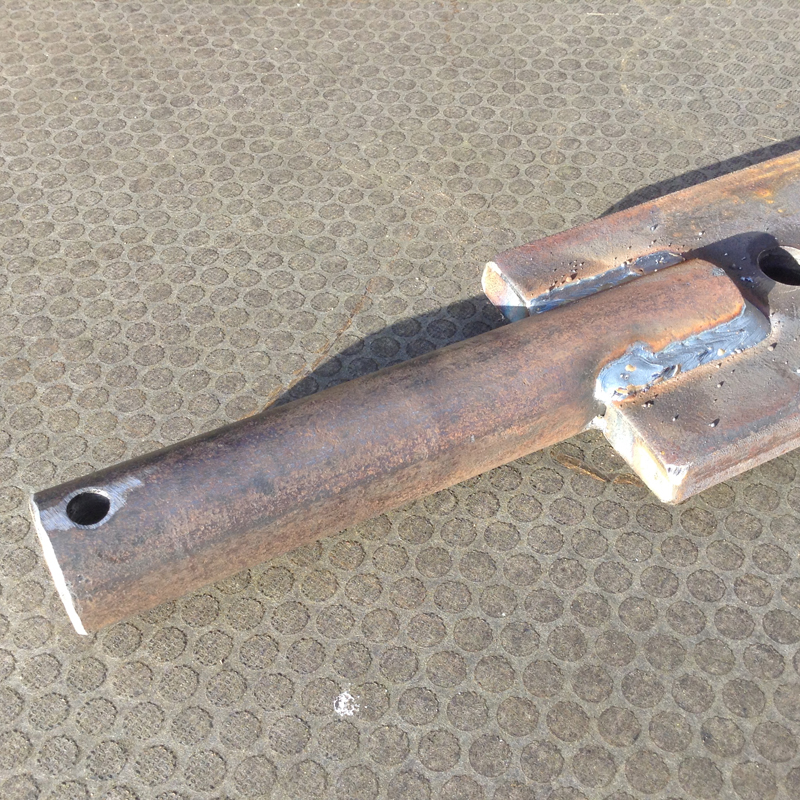

About our Stock Stub Axles for Shepherd Hut Wheels :

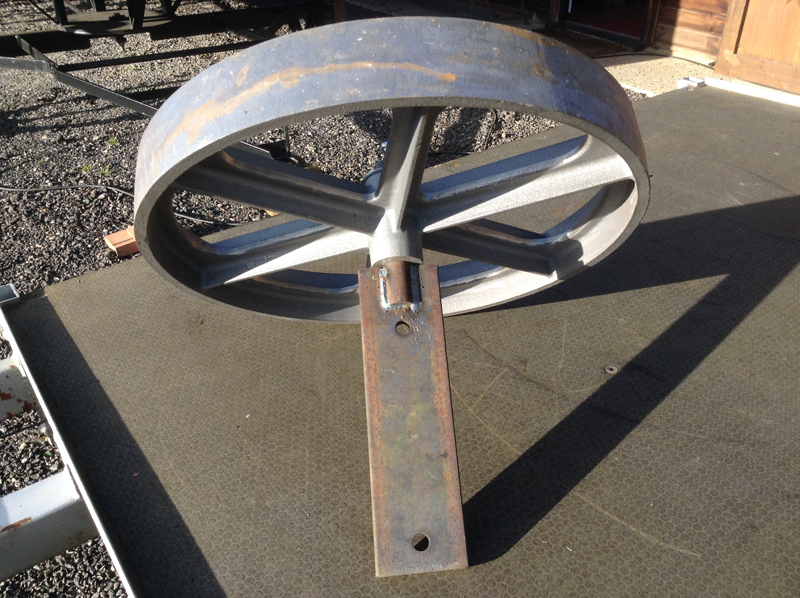

These stub axles are supplied primarily for use with a wooden chassis, as a low cost alternative to bespoke, individually machined stub axles (which we also supply and which are recommended if your hut is to be moved regularly). The stock stub axles are made to fit our 20” and 24” diameter cast iron wheels, with a tolerance of 1mm. ALL stock stub axles are checked to fit the wheels, before despatch.

Useful Info

The stock stub axles are supplied complete with heavy duty split pins and washers. The fixing plates can be drilled with additional bolt holes if necessary.
