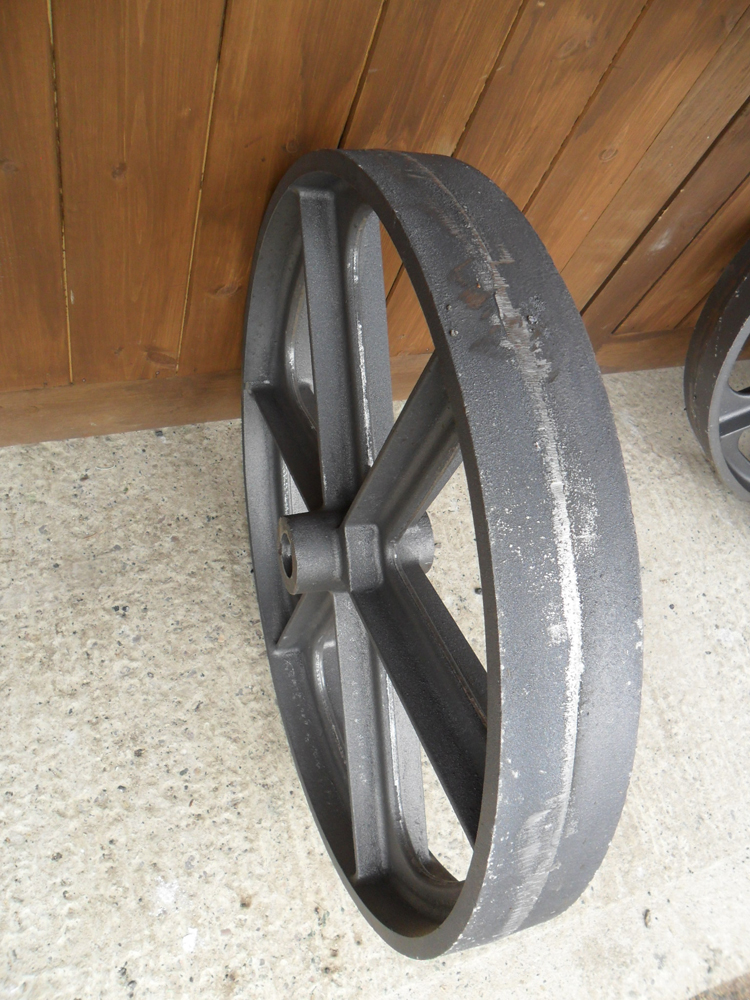

Technical specification:
Diameter: 24” / 610mm
Rim width: 82mm
Hub depth: 117mm
Bore (for axle): 37mm
Weight: 37kgs
Useful info:

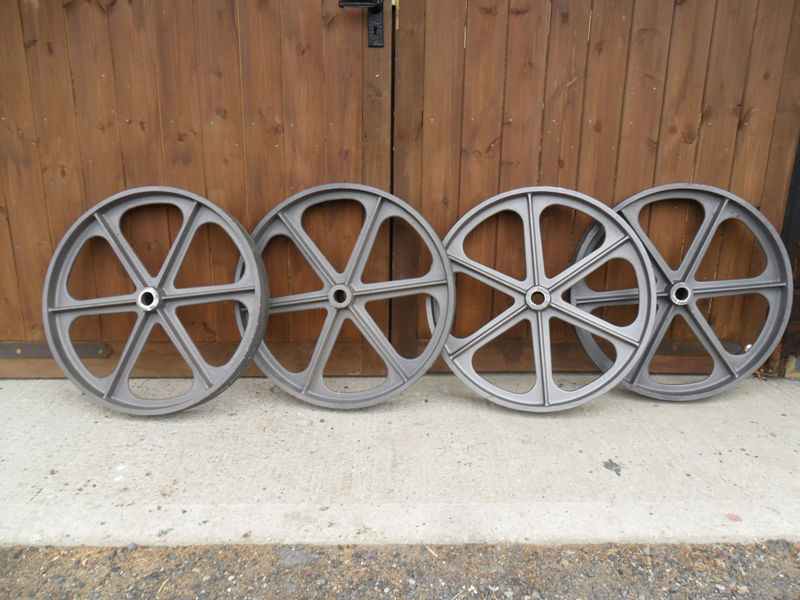

These wheels can be bought individually to make up a set of either 4 x 24” for use on a rolling chassis or 2 x 24” + 2 x 32” or 40” for use on a turntable chassis.
Our cast iron wheels are supplied to shepherd hut makers throughout the UK. They have no identifying trademarks or imprints.

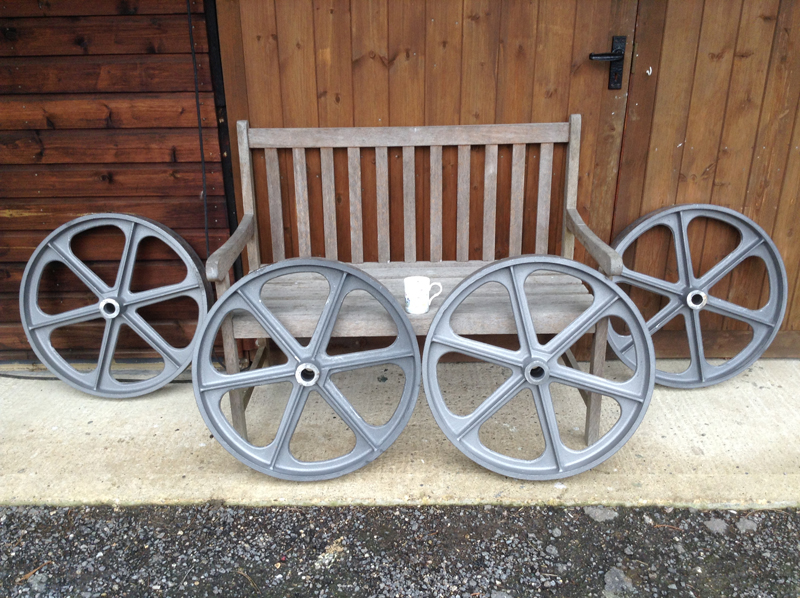

The last picture on the left shows the whole family of cast iron wheels that we are now able to supply – 20”, 24”, 32” and 40” diameter. All made to the same design, specification and high quality.
Please note that we can now supply cast iron wheels with your own or your company name imprinted on them. Please contact us for details.
About our Shepherd hut wheels:

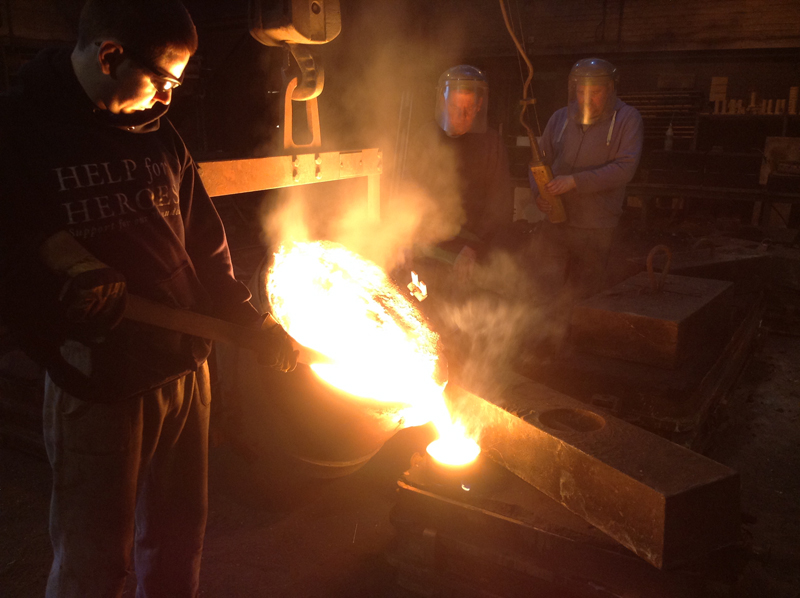

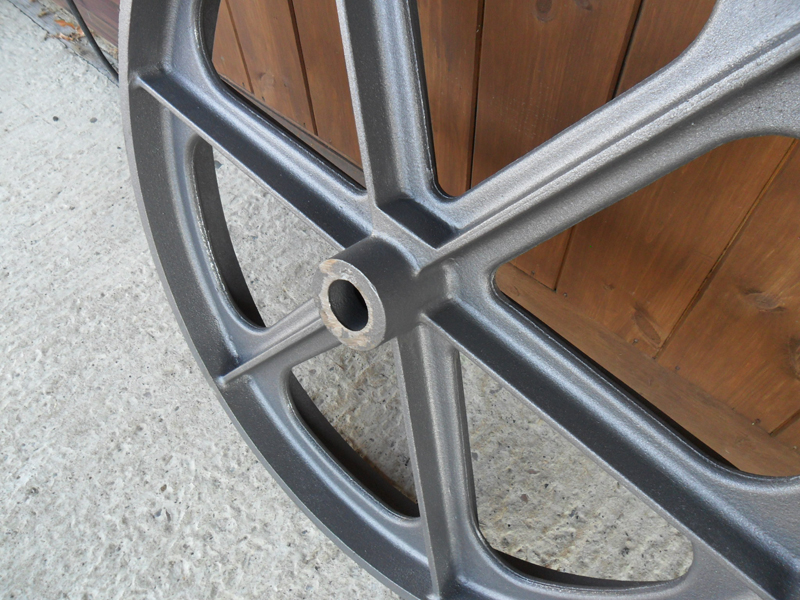

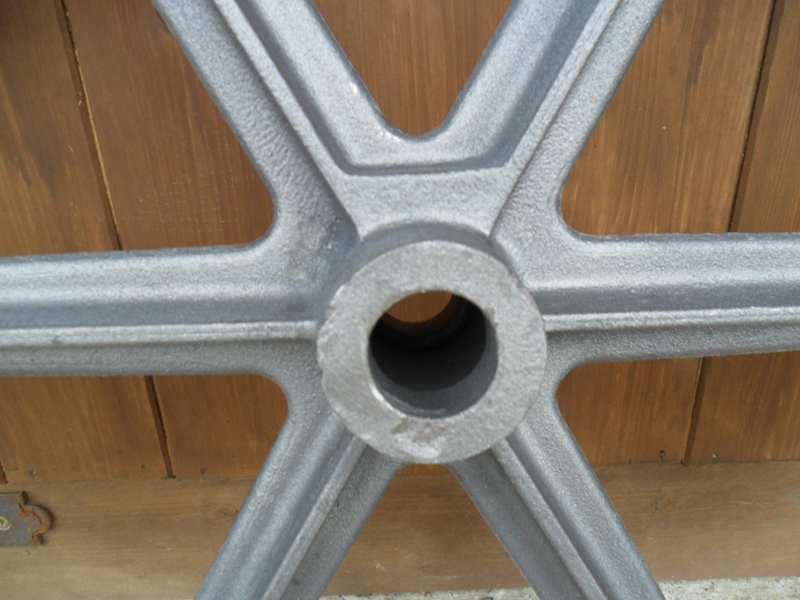

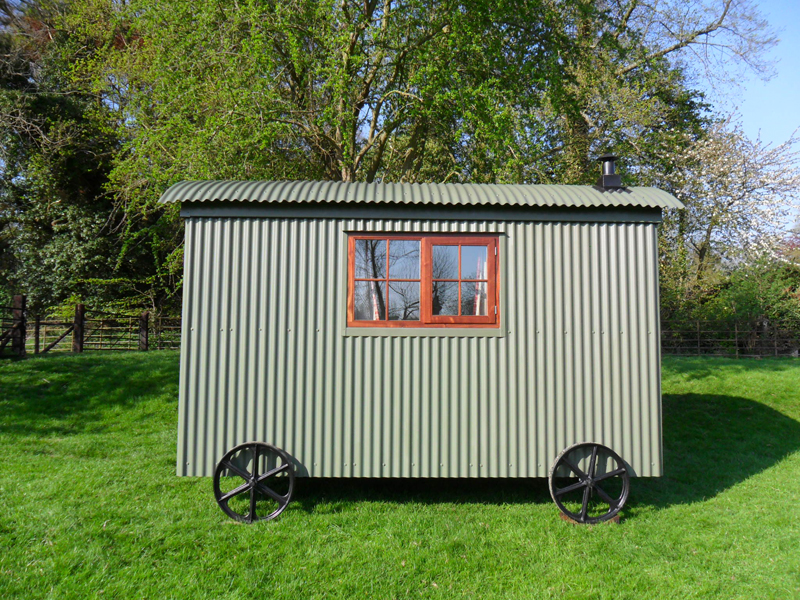

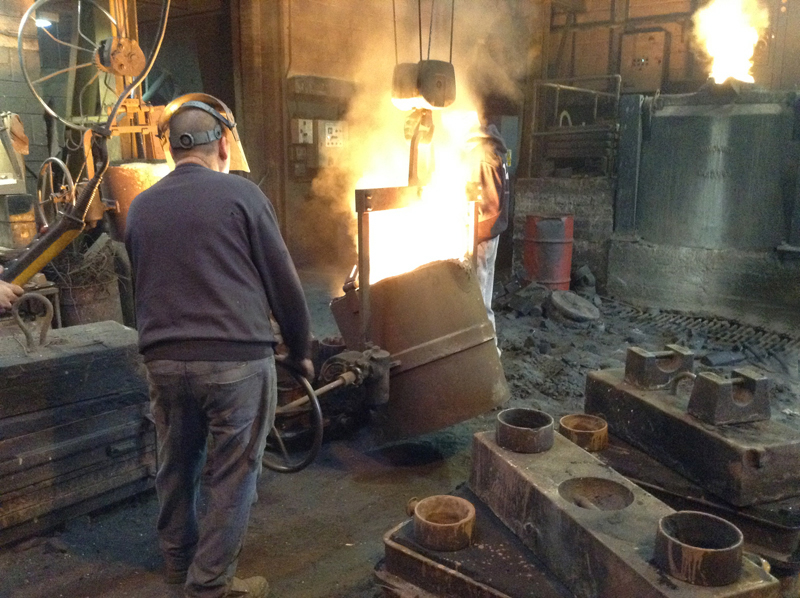

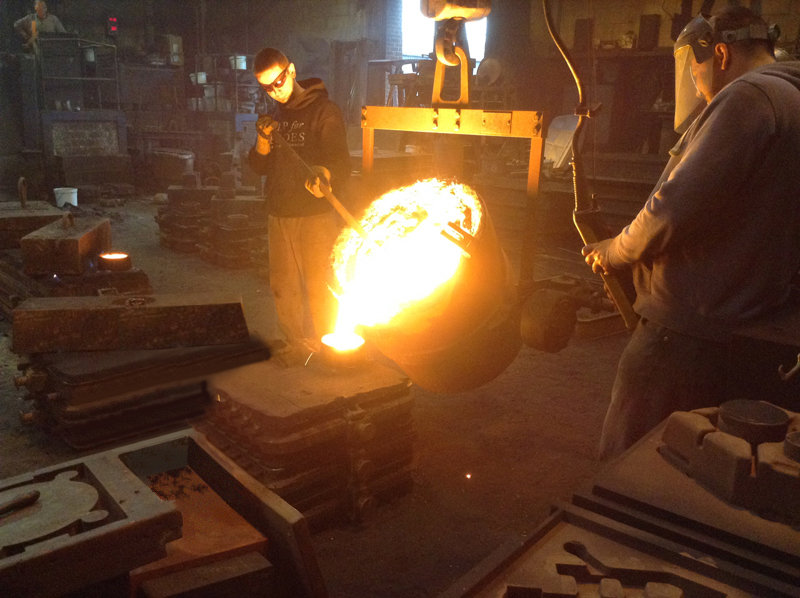

Our wheels are a traditional design, cast from our own patterns in two local Midlands’ Foundries. Each wheel has a grease chamber in the hub and a grease nipple 'seat' in the reverse of the hub (so it is not visible), which can be drilled and tapped if required. They are heavy and durable and are used on all our Shepherd Huts. They are supplied unpainted. The larger rim on our wheels provides improved towing & stability, particularly on soft ground. The hub depth on 24" wheels is larger than the 32" wheels. This is because, when used as the front pair on a turntable chassis, they are subject to greater stress when turning. Additional width gives additional strength! We can also supply stub axles to fit your chassis.The stub axles and wheels are machined to fit snugly, therefore eliminating the majority of "wobble" - particularly important when the inside rim of the wheel is close to your hut walls.
